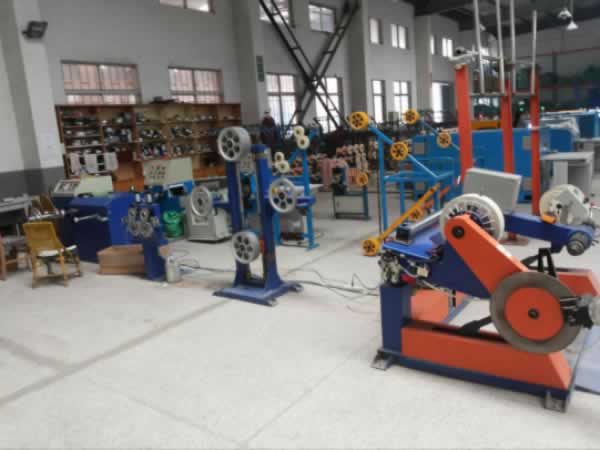

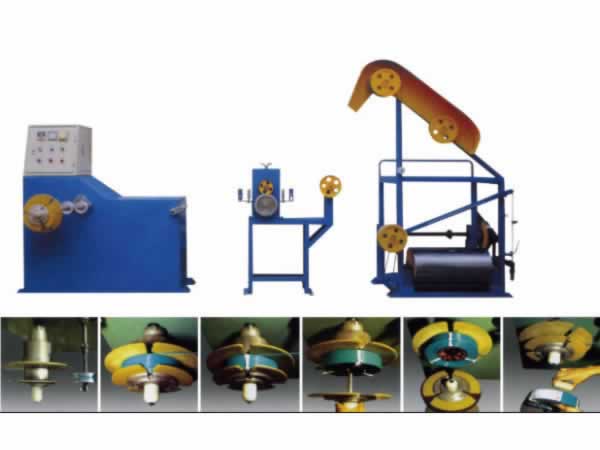

Wire Wrapping Machine

Usage
We developed this wire wrapping machine to apply various wire wraps for insulation and wire shielding purposes. A vital component in many different cable and wire production operations, As a vital component in many different cable and wire production operations, the wire wrapper is suitable for 0.5~6mm2, 10~70mm2, 10~240mm2 wires.

Inquiry Form

Features
1. The automatic tension unit controls the pay off unit, pay off bobbin neatly spools the wire.
2. Adopts an auto pay off set.
3. High efficiency, can produce 700 spools in 8 hours of operation.

Main Technical Parameters
Model φ630mm φ1250mm φ1250mm~φ1600mm
Applicable wire range 0.5-6mm2 10-70mm2 10~240mm2
Traversing tension Automatically
Main motor speed 600r/min 300r/min 300r/min
Loading bobbin type Lever-type Electric type Electric type
Pay-off bobbin model φ400-630mm (national standard) φ800-1250mm (national standard) Φ1000-1600mm (national standard)
Tapping model OD≤320mm ID≤120mm Width: 30-100mm Adjustable OD≤600mm ID: 200/300mm Width: 60-150mm or 150-200mm Adjustable 50-250 Adjustable
Power 2.2KW 3KW 4KW
Meter counter structure Type of wheel pressure Double wheel type with air pressure Double wheel type with air pressure
Induction type/measurement accuracy Rotary encoder/0.5% Rotary encoder/0.5% Rotary encoder/0.5%
