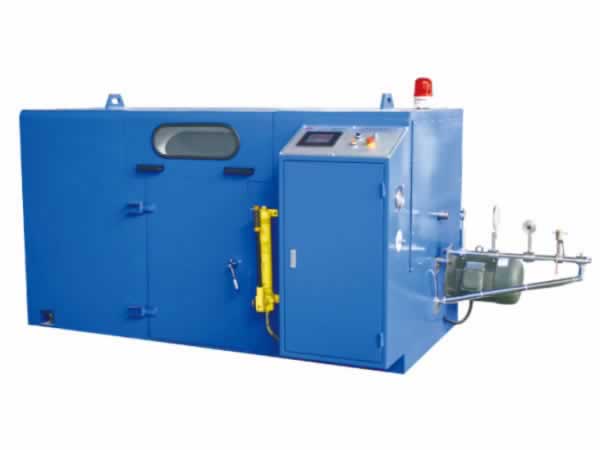

Automatic Double Twist Bunching Machine

Usage
The automatic double twist bunching machine is a high efficiency cable and wire making machine used for bunching bare copper, tinned wire, enameled wire, etc.

Main Technical Parameter Main Components
Model F-300P F-500P F-500P/B F-650P F-800P
Twisting section area (mm2) 0.035~0.45 0.05~ 2.50 0.05~ 4.00 0.18~ 6.00 2.50~ 16.00
Copper wire dia. (mm) 0.05~ 0.25 0.1~ 0.45 0.1~ 0.52 0.18~ 1.00 0.5~ 1.2
Twisting pitch (mm) 2.00~ 17.17 6.30~ 50.40 6.30~ 65.00 11.61~ 66.03 22.51~ 152.32
Max main shaft speed (r/min) 3000 3000 2500 2000 1200
Max bobbin dia (mm) φ300 φ500 φ500 φ630 φ800
Motor Power (KW) 4 5.5 5.5 7.5 11
Main shaft center height (mm) 630 700 700 850 700
Auxiliary Machine

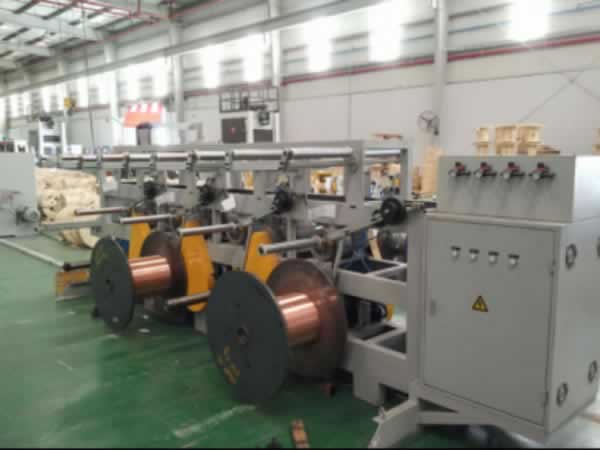

  • Pay off

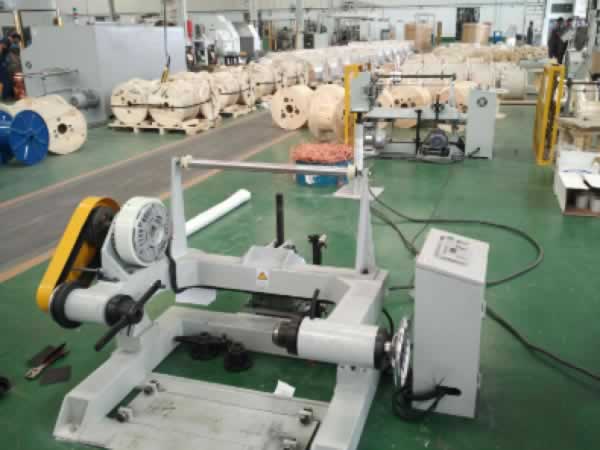

  • Rewinder
