Rigid Cage Stranding Machine

Inquiry Form

Usage
Our rigid cage stranding machine is industrial equipment designed for the high efficiency production of compact-strand bare aluminum wire, bare copper wire and ACSR for power cable production. The rigid strander is suitable for high speed operation with various safety devices to minimize downtime.

Main Capability Features

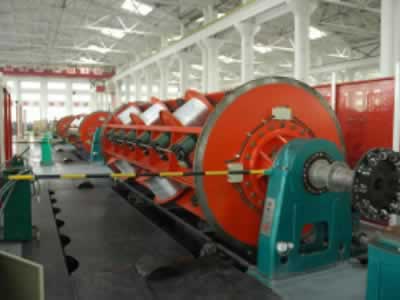

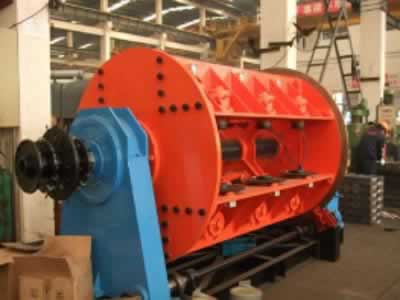

1) The reels are arranged around the stranding cages.
2) High rigidity, high performance, high speed and low inertia during operation.

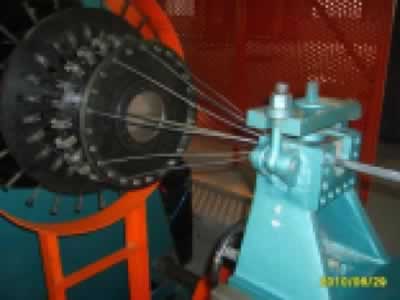

3) Driven by 36-stage variable gear-box, dual hauling and dual active device. Natural wire distribution avoids abrasion damage when stranding.
4) Advanced emergency stop device directly controls every real. If any wire breaks, the entire machine will automatically stop at once.
5) Siemens PLC control system.

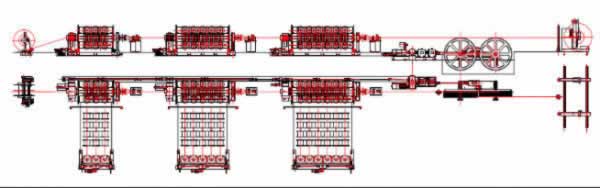

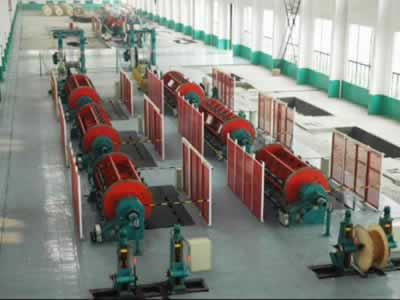

Layout
Main Parameters of the JLK 500 Rigid Frame Stranding Machine
Item Unit F-JLK500
Stranding-single wire Dia. mm Copper Ø1.5~4.5
Aluminum Ø1.8~5.0
Max. section area mm2 Copper 500
Aluminum 630
Cage rotating speed r/min 63~148
Hauling line speed m/min 6.87 ~ 52.2
Stranding pitch mm 47 ~ 825
Capstan Dia. mm Ø 2000*2
Central payoff bobbin size mm PN1600
Payoff bobbin size in cage mm PND500
Takeup bobbin size mm PN 2500
Machine center height mm 1000
Main motor power KW 55
Main Parameters of the JLK630 Rigid Frame Stranding Machine (Lumped Loading/Unloading)
Item Unit F-JLK630
Stranding-single wire Dia. mm Copper Ø 1.5~4.5
Aluminum Ø 1.8~5.0
Max. section area mm2 Copper 300
Aluminum 400
Cage rotating speed r/min 6 Bobbins 75~174
12 Bobbins 67~156
18 Bobbins 57~133
24 Bobbins 48~112
30 Bobbins 43~100
Hauling line speed m/min 6~45.6
Stranding pitch mm 34~1041
Capstan Dia. mm Ø 2500*2
Central payoff bobbin size mm PN1600
Payoff bobbin size in cage mm PND630
Takeup bobbin size mm PN2000
Machine center height mm 1000
Main motor power KW 45
Main Parameters of the JLK710 Rigid Frame Stranding Machine (Lumped loading/Unloading)
Item Unit F-JLK710
Stranding-single wire Dia. mm Ø2.2~6.5
Cage rotating speed r/min 40~156
Hauling line speed m/min 6~44
Stranding pitch mm 55 ~ 1050
Capstan Dia. mm Ø 2500
Center height of machine mm 1100
Payoff bobbin size in cage mm PND710
Center payoff bobbin size mm PN1600
Takeup bobbin size mm PN3150
Main motor power KW 185(DC)
Install power KW 220
