Wire and Cable Extrusion Line

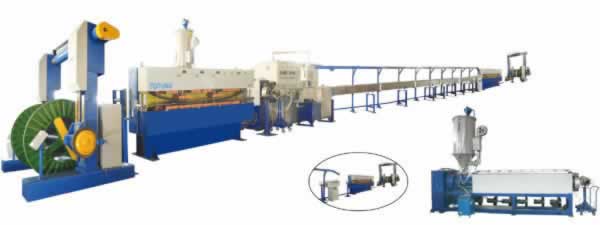

30mm-150mm Wire Extruder Production Line

Application
The wire and cable extrusion line is primarily used for wire and cable insulation using PVC, LDPE, Nylon and TPU. It can also be equipped with a triple co-extrusion crosshead and double layering system.

Inquiry Form

Production Line Consists
Pay off, main cabinet, fixed trough, movable trough, accumulator, traction device, take-up, spark tester.

Optional Parts
Active pay off, pre-heater, power machine, diameter-testing laser gauge, LSZH screw, single and dual bobbin take-up, coiling and wrapping machine.

Features
The extrusion machine can achieve a concentricity of the finished wire products of more than 90% with high precision. All of this is possible with the user-friendly interface and automated operation.

Main Parameters
Type and Designation Screw Parameters Extrusion Capacity(kg/h) Power（kw） Finished Wire Dia.(mm)
Dia.
(mm) 		L/D
Ratio 		Rotation Speed
(r/min) 		PVC LDPE PP Main Motor Power Total
Power
 FJX-30 Φ30 25:1 20-110 25 16 13 5.5 21 0.2-1
FJX-40 Φ40 25:1 20-110 40 20 17 7.5 24 0.4-3
 FJX-50 Φ50 25:1 20-110 80 40 34 11 28 0.8-5
 FJX-60 Φ60 25:1 15-110 100 53 41 18.5 42 1-8
FJX-70 Φ70 25:1 15-110 130 86 68 22-37 50 2-12
FJX-80 Φ80 25:1 10-90 200 122 96 30-55 65 3-25
FJX-90 Φ90 25:1 10-80 240 133 124 37-75 75-113 5-35
FJX-100 Φ100 25:1 85 280 190 150 75-90 134-149 10-60
FJX-120 Φ120 25:1 80 380 260 200 90-132 176-208 12-70
FJX-150 Φ150 25:1 60 650 400 350 110-160 205-255 15-80

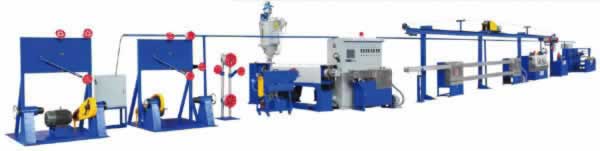

70mm-200mm Cable Extruder Production Line

Usage
PVC, LDPE, Nylon, and TPU insulation.

Inquiry Form

Production Line Consist
Pay off, main machine, main cabinet, fixed trough, traction, take-up.

Optional Parts
Caterpillar, sparkling machine, diameter-testing laser gauge, LSZH screw, gantry type take-up and pay off, end-shaft type take-up and pay off.

Main Parameters
Model Screw Parameters Extrusion capacity(kg/h) Power(kw) Pay-off wire dia.(mm) Finished wire dia.(mm)
Dia. (mm) L/D Ratio Rotation Speed (r/min) Extrusion Capacity Main Motor Power Pay-off wire dia.(mm) Finished Wire Dia.(mm)
FJX-70 Extrusion Φ70 25:1 100 130 30 3-15 4-30
FJX-80 Extrusion Φ80 25:1 95 180 75 3-20 4-40
FJX-90 Extrusion Φ90 25:1 90 280 90 3-35 4-45
FJX-100 Extrusion Φ100 25:1 85 330 110 4-50 5-60
FJX-120 Extrusion Φ120 25:1 80 420 132 8-70 8-80
FJX-150 Extrusion Φ150 25:1 70 780 160 8-100 15-120
FJX-200 Extrusion Φ200 25:1 60 1000 250 30-140 35-145
