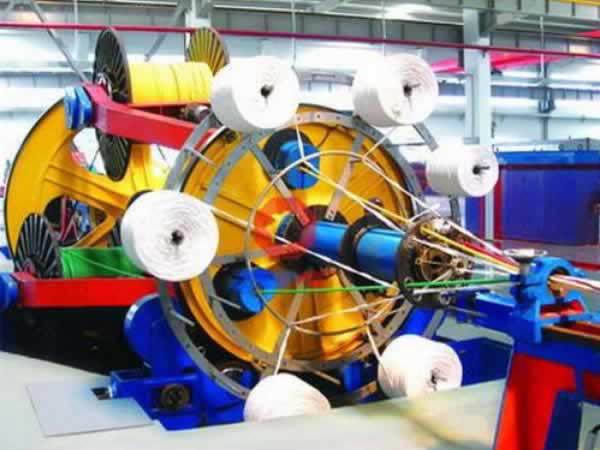

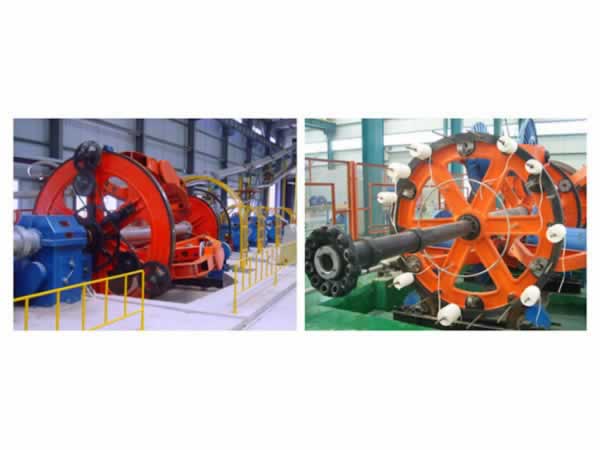

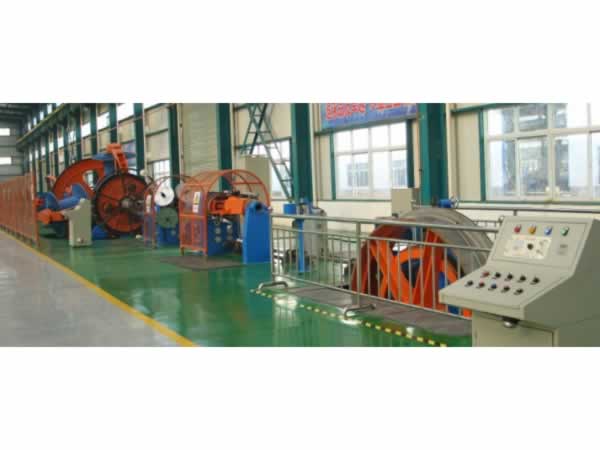

Planetary Cabling Machine

Inquiry Form

Usage
The planetary cabling machine is specially designed for the cabling of medium-low voltage cables, telephone cables and control cables.

Main Features
1. The cable production machine is much more cost efficient compared with traditional stranding machines.
2. The machine is capable of back-twist stranding, electronic pre-twisting.
3. The machine is equipped with a PLC control system for pre-set laying pitch and for speed synchronization with the take-up unit.
4. Caterpillar (belt) type haul-off unit driven by independent motor.
5. The machine can be equipped with a taping or armoring device.

Main Components

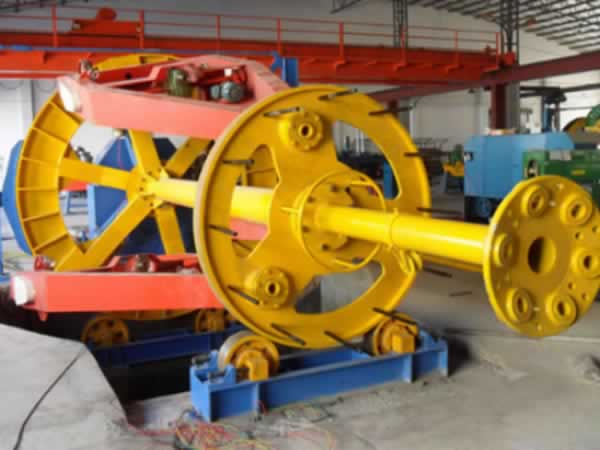

1. Stranding cage 1 set
2. Die holder 1 set
3. Taping unit 1 set
4. Steel tape armoring head 1 set
5. Mechanical meter counter 1 set
6. Single wheel capstan 1 set
7. Shaft-less take-up 1 set
8. Mechanical transmission system 1 set
9. Electrical control system 1 set
10. Safety fence 1 set
Main Parameters
Bobbin size (mm) Max rotation speed (rpm) Cable core O.D.(mm) Loading capacity (kg)
6B 12B 18B
Ø400 150 131 115 Ø1.0~Ø2.5 100
Ø500 123 109 96 Ø1.5~Ø6.0 200
Ø630 100 87 77 Ø2.0~Ø10.0 300
Bobbin size (mm) Max rotation speed((rpm) Cable core O.D.(mm) Loading capacity (kg)
3B 6B (1+3)B (1+1+3)B
Ø1000 40 40 Ø5.0~Ø20.0 2000
Ø1250 32 32 32 32 Ø6.0~Ø25.0 3000
Ø1600 21 21 21 21 Ø10.0~Ø35.0 4000
