Tubular Stranding Machine

Inquiry Form

Usage

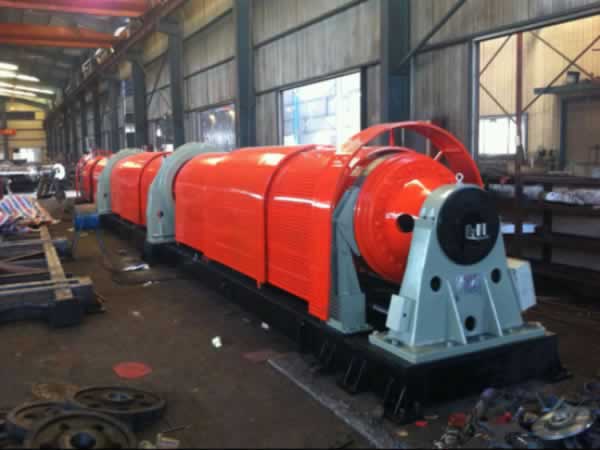

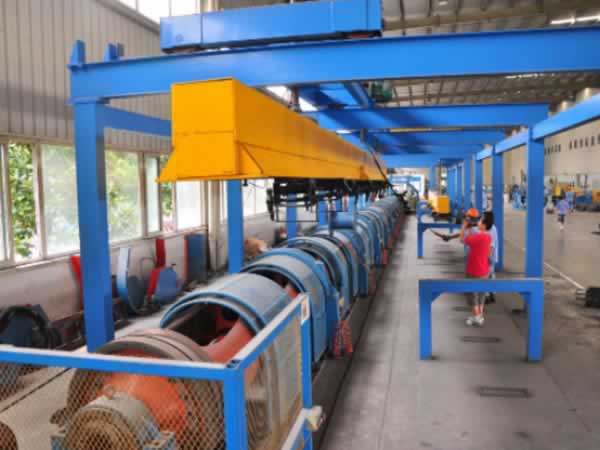

The tubular stranding machine is employed for the stranding of copper, aluminum and steel wires and ropes. The equipment takes several wires and join them together around a common axis for wire and cable production.

Main Capability Features

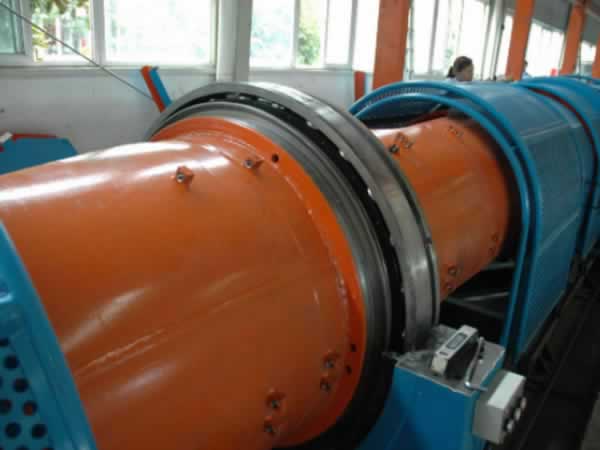

1. The cable making unit adopts a large bearing to support the structure of the barrel rotated by the main engine, increasing the rotating speed, accuracy, stability and extending the service life of the machine.

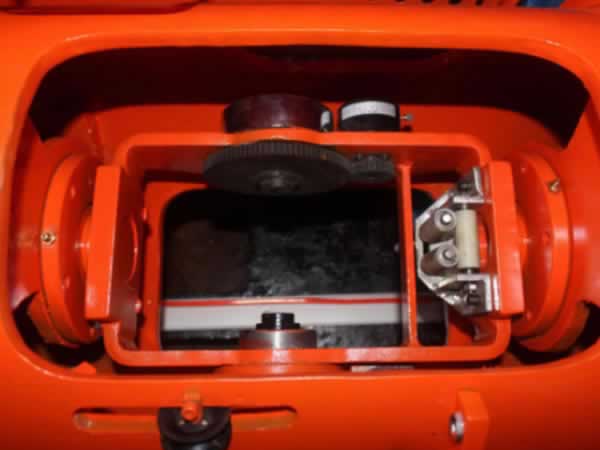

2. The barrel employs a three windows structure, entirely welded with good rigidity and stability.
3. High rotating speed with excellent stability and low noise output.

Components
Fixed pay-off frame, main engine, doubling die holder, bearing lubrication system, meter counter, dragger, take-up, and drive system.
It can also be fixed with a taping device upon request.

Main Parameters
Bobbin size(mm) Max. rotation speed(rpm) Wire dia.(mm)
6B 12B 18B 24B Aluminum Copper Steel
200 1500 1200 0.2~0.8 0.2~1.5
315 1200 1000 0.3~1.0 0.5~1.8
400 1000 800 550 1.0~2.5 0.6~3.0 1.4~4.0
500 800 600 450 350 1.3~5.0 1.3~3.5 1.8~5.0
560 700 500 400 300 1.3~5.0 1.3~3.5 1.8~5.0
630 600 450 330 260 1.3~5.0 1.3~3.5 2.0~6.0
710 400 300 1.3~5.0 1.3~3.5 2.0~6.0
760 350 1.3~5.0 1.3~3.5 2.0~6.0

Other search items: tubular strander
