Aluminum Bar and Profile Production Line

Description
Our aluminum bar and profile production lines are comprehensive metal casting machines that perform melting, casting and extrusion for aluminum and aluminum alloy products. This equipment is used in the production of all kinds of building materials such as aluminum bars, profiles, tube rods and many others.

Inquiry Form

Features and Specifications
1. Melting furnace
Bath capacity: 3-50T
Furnace shape: Rectangular, circular
Furnace type: Tilting or stationary
Heating fuel or energy: natural gas, liquefied petroleum gas, light diesel oil, heavy oil

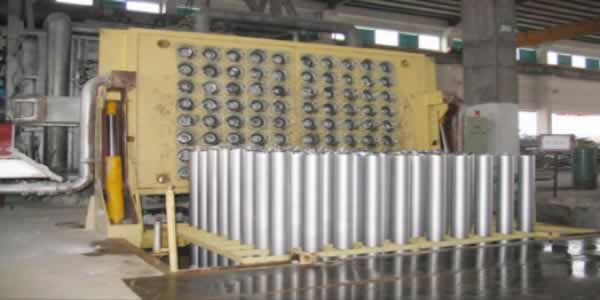

2. Casting Machine
Casting type: Semi-continuous casting
Capacity: 3~30T

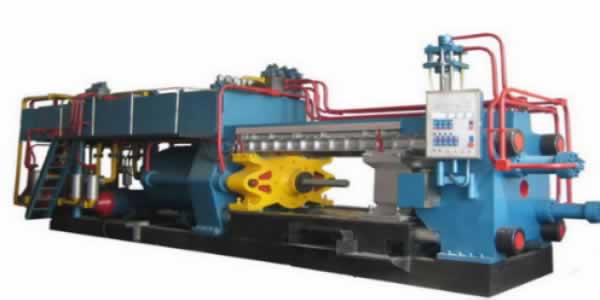

3. Extrusion machine

Technical Parameters
Item FJT-550 FJT-630 FJT-850 FJT-1250
Extrusion Force (KN) 5500 6300 8500 12500
Return force (UST) 550 700 880 1350
Working Press (Mpa) 21 21 21 21
Locking Force (KN) 484 633 633 800
Piercing force (KN) 659 1030 1030 1293
Maximum extrusion speed (mm/s) 45 42 40 40
Preheating Power (KW) 12 14 18 20
Main motor power (KW) 100 155 155 210
Extrusion cylinder bore size range (mm) φ75-φ115×400 φ95-φ125×500 φ100-φ150×550 φ130-φ170×650
The host center height (mm) 700 800 1000 1200
