Automatic Hydraulic Drawing Bench

Inquiry Form

Description
The automatic hydraulic drawing bench is an incredible piece of equipment that has been engineered for draw forming and length cutting of various copper-aluminum profiles after an extrusion process. The drawn profiles have stable cross-sectional diameters with outstanding hardness, strength and conductivity.

Production Process
Place the coil → Straightening and feeding → Pass through die → Clamp copper bar → Drawing → Cutting copper bar → Transport → Conveyor with roller → Fixed length cutting → Unloading and stacking

Technical Parameters
Model F-50-12 F-50-10 F-50-8
Drawing force (t) 12 10 8
Max drawing length (m) 50 50 50
Copper bar size Width (mm) ≤200 ≤200 ≤200
Thickness (mm) ≤20 ≤20 ≤20
Drawing speed (m/min) 3~15 3~15 3~15
Return speed (m/min) 45 45 45
Main motor (kw) 75KW 75KW 75KW

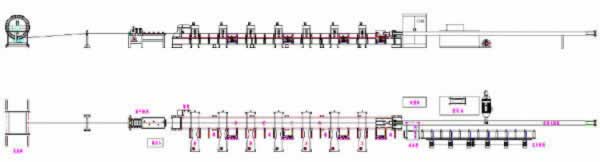

Layout
