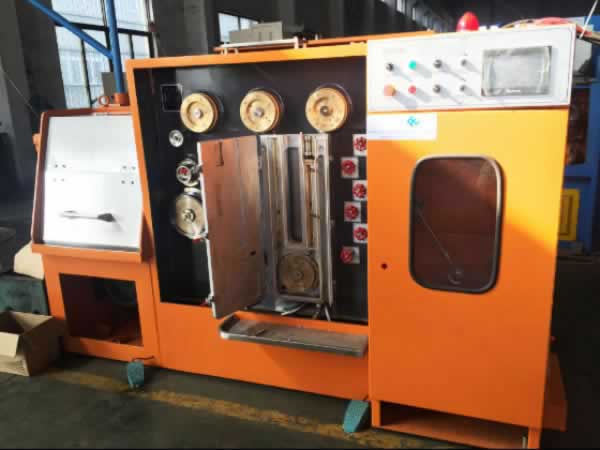

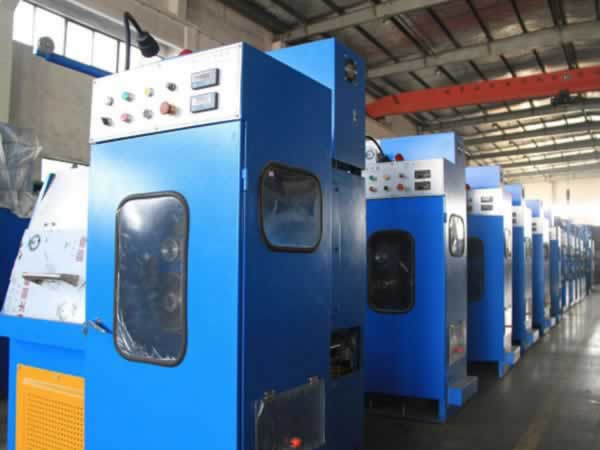

Fine Copper Wire Drawing Machine

Inquiry Form

Usage
Sometimes you need wire production equipment that can be used for smaller wires without fear of breakage. The fine copper wire drawing machine is designed for standard drawing purposes for copper wire that delicate and easily damaged if handled improperly.

Main Features
1. The fine wire drawing machine features double inverter motors for high precision operation.
2. Tension auto control system.
3. High tension flat belt drive with low noise during operation.

Main Parameters
Machine type FJX-B17 FJX-B20 FJX-14D FJX-B22
(FJX-B22/A) 		FJX-B24
(FJX-B24/A) 		FJX-22D
(FJX-22DA) 		FJX-24D
(FJX-24DA)
Inverter control Double inverter control
Main machine structure four cones in horizontal two cones in horizontal four cones in horizontal four cones in vertical
Max. Inlet Dia. (mm) Ф1.8 Ф1.6 Ф1.38 Ф1.2 Ф1.2 Ф1.0
Outlet Dia. (mm) Ф0.30～Ф0.70 Ф0.30～Ф0.65 Ф0.25～Ф0.50 Ф0.1～Ф0.5 Ф0.08～Ф0.32 Ф0.10～Ф0.32 Ф0.08～Ф0.25
Max. Die No. 17 19 14 22 24 22 24
Max. Line speed (m/min) 1500 1500 1200 2000 ( 2500 )
Body structure Welded Ironed cast

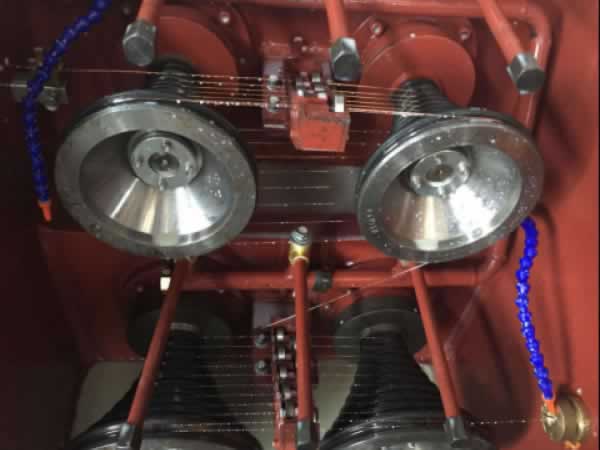

Drawing capstan Ceramic plasma capstan
Slip ratio of m/c ( % ) 15 13 15 13
Main motor power (kw) 18.5 15 15 11 ( 15 ) 11
Take-up motor (kw) 5.5 5.5 5.5 4 4
Fix speed capstan Dia.(mm) Ф200 Ф200 Ф268 Ф160 ( Ф206 )
Transmission type Belt

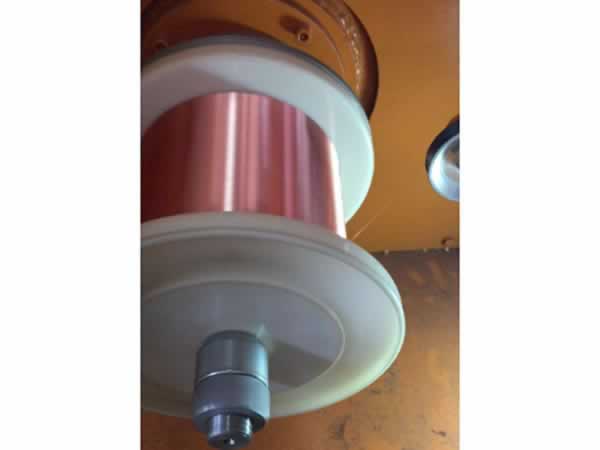

Take-up bobbin size (mm) Ф300 / Ф400 Ф300
Traversing type Synchronous motor +belt
Tension control Weight balance type
Lubrication type Full immersion Spray
Brake Magnetic Brake
Weight (KG) 2600 2600 2200 2300 2300 2000 2000
